At Ellipsiz, we pride on providing first class service and support to our customers for specialized equipment requiring professional knowledge.
Service and Support
At Ellipsiz, we pride on providing first class service and support to our customers for specialized equipment requiring professional knowledge.

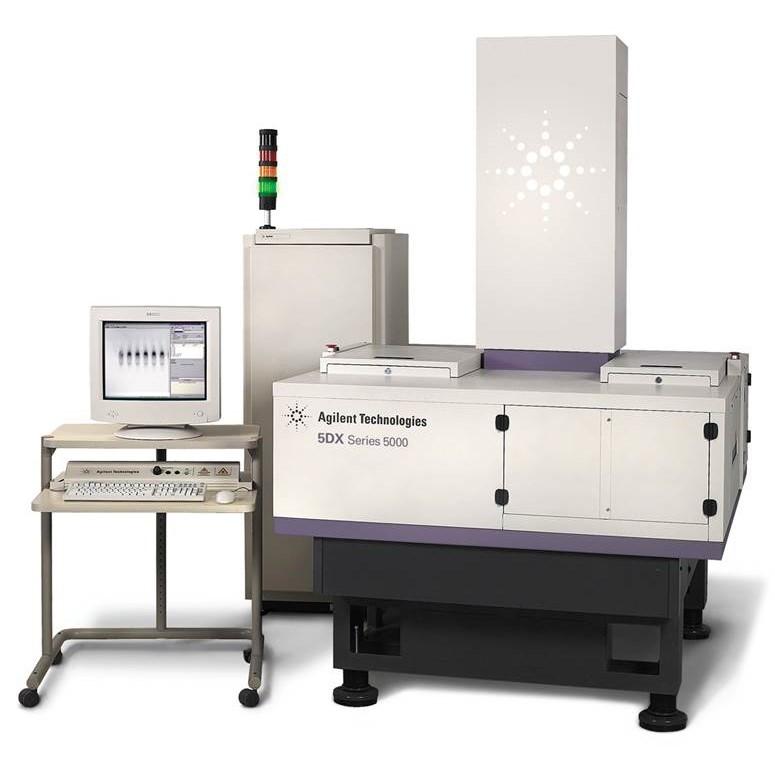

Agilent 5DX medalist series offers unique 3D capabilities to inspect hidden solder joints, double sided PCBA inspection on the solder joints quality; we at Ellipsiz DSS maintain a team of service engineers that are Agilent certified 5DX and capable of providing repair services and consultation at industry leading standards.
Services we provide for the Agilent 5DX
- Rental and Leasing
- We provide leasing of Agilent 5DX Series 3 inspection systems to tide your business over as you transition to new equipment, or require a temporary throughput surge in your processes.
- Maintenance Contract
- We provide extended maintenance contracts to allow existing users of Agilent 5DX Series 3 equipment to continue operating fuss free and with peace of mind, protecting your existing investments and providing a cost effective way to extend the life of your equipment.
- Application and Hardware Training
- Our team of highly trained and highly motivated Agilent certified service engineers are more than capable of seeing your staff trained and ready for any operational requirements and ensuring industry standards are met.
- Repair and Provision of Spare Parts
- We provide alternate channels for the acquisition of Agilent 5DX Series 3 spare parts, as well as the capability to repair them. Trust Ellipsiz DSS to always be there for you when you need us.
DTS Package Test (DIB) loadboards are designed to specific devices and configured for both hand test and fully automated handler applications. DTS loadboards incorporate any brand of socket or contactor and can be configured for multi-site testing. Designs incorporate all necessary components, connectors, mechanical hardware and stiffeners to provide a complete plug-n-play solution. DTS has a vast database of tester and handler information which allow designs to be started and completed quickly without burdening the customer to supply excessive information. DTS designers are experienced in all device types, including digital, analog, mixed signal and RF devices.
Service provided in partnership with DTS
